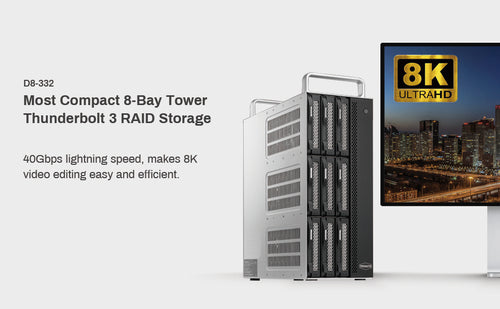

TERRAMASTER D8-332 Thunderbolt 3 Storage Most Compact Professional-Grade 8-Bay Tower Thunderbolt3 Hardware RAID Enclosure Support RAID 0/1/5/10/JBOD External Hard Drive RAID Storage (Diskless).

TerraMaster

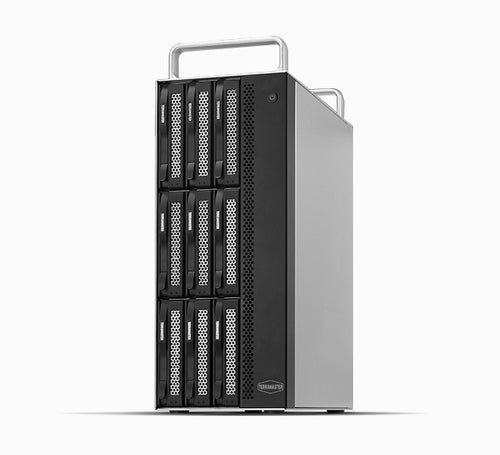

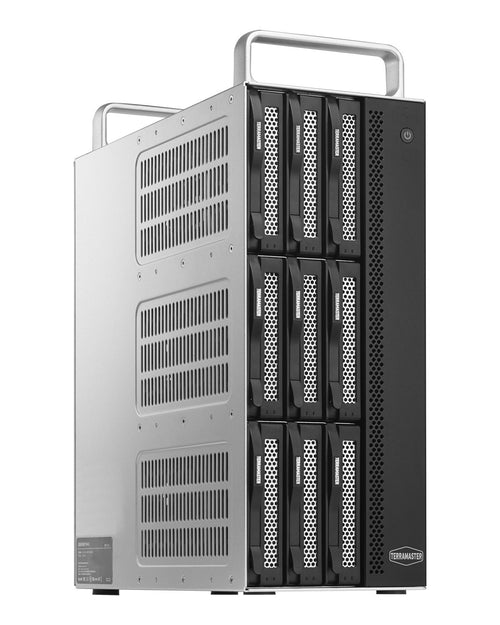

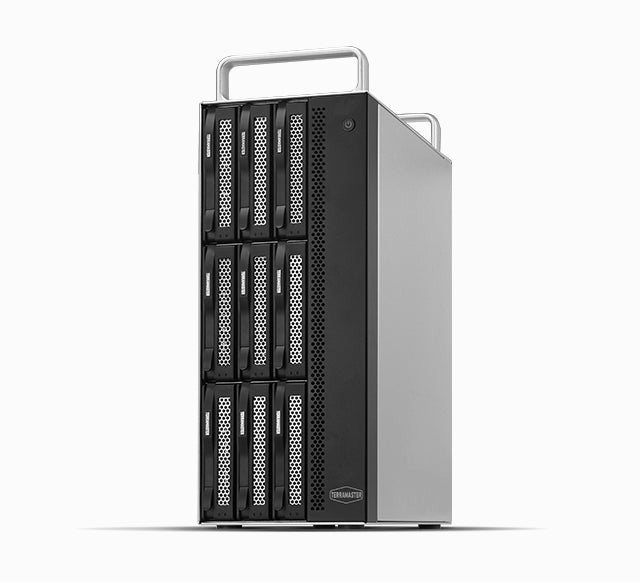

D8-332 8-Bay DAS

Name: D8-332 8-Bay DAS
Brand: TerraMaster
Price: 1299.99 USD
Availability: OutOfStock

D8-332 8-Bay DAS

$1,299.99 USD

$1,299.99 USD ~~$1,299.99 USD~~

In offerta Esaurito

Spese di spedizione calcolate al check-out.

[Controller RAID hardware autentico] Il dispositivo di archiviazione D8-332 Thunderbolt 3 è dotato del più recente chip RAID dedicato e di memoria cache ad alta velocità per completare tutte le elaborazioni RAID, offrendo una vera protezione RAID hardware ad alte prestazioni per garantire una trasmissione dati stabile e performante. Questo dispositivo di archiviazione Thunderbolt 3 a 8 alloggiamenti è adatto per gli editor video che lavorano con flussi video HD e 4K multicanale in tempo reale.
[Archiviazione ultraveloce per l'editing video] Grazie a una coppia di interfacce Thunderbolt 3 (40 Gbps) e a un controller RAID hardware, il dispositivo di archiviazione D8-332 Thunderbolt 3 può operare a velocità di trasferimento di 1600 MB/s con un disco rigido ad alta velocità da 7200 RPM e in modalità array RAID 0. In modalità RAID 5, il dispositivo può raggiungere una velocità di 1440 MB/s. Funziona con computer dotati di porte Thunderbolt 3 o 4, NON compatibile con porte USB. [Archiviazione ad alta capacità] RAID hardware multiplo: RAID 0/1/5/10/JBOD, singolo. Supporta una capacità di archiviazione fino a 160 TB (20 TB x 8, in RAID 0); gli utenti possono anche collegare a cascata altri dispositivi di archiviazione Thunderbolt 3 tramite l'interfaccia Thunderbolt 3, raggiungendo un'enorme capacità di 960 TB collegando insieme sei dispositivi D8-332 Thunderbolt 3.
[Un dispositivo multifunzione] Sfruttando l'interfaccia Thunderbolt 3 e DP, l'archiviazione D8-332 Thunderbolt 3 supporta display multischermo con un massimo di 3 monitor o il collegamento a cascata di un massimo di 6 dispositivi per creare l'ambiente di lavoro più intelligente. Questa è una soluzione ideale per chi lavora in multitasking, soprattutto quando l'efficienza è l'obiettivo finale.
[Professionale e sicuro] Dotato di 3 ventole intelligenti integrate da 80 mm con controllo della temperatura che garantiscono un'eccellente dispersione del calore. Inoltre, il suo corpo in metallo robusto e durevole e il design umanizzato con doppie maniglie consentono di spostarlo facilmente e in sicurezza per soddisfare le esigenze del lavoro in studio e sul campo.

Quantità

Visualizza dettagli completi

Features

D8-332

8-Bay Professional-Grade RAID

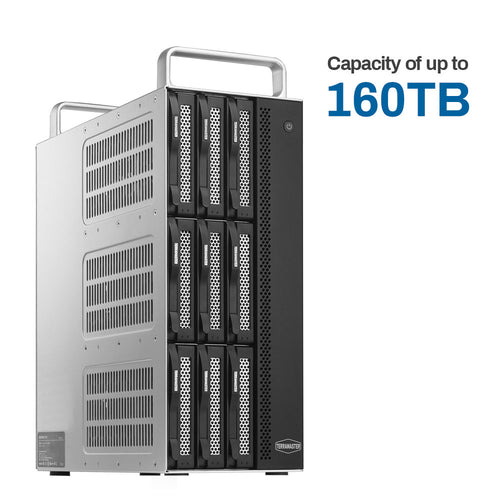

Large Storage Capacity

TerraMaster’s 8-bay D8-332 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalise on a total storage capacity of up to 160TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.

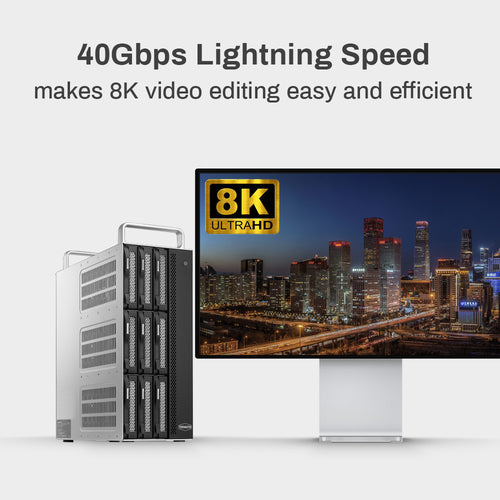

Lightning-Fast

Drawing on a pair of Thunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the D8-332 can operate at transfer speeds of 1600 MB/s with 8 HIKVISION V100 SSDs in RAID 0 array mode. In RAID 5, the device can achieve a speed of 1440 MB/s.

Enjoy Rapid Video Workflows

The time needed for virtually every aspect of the post-production workflow falls when using the D8-332. At lightning speed, users can transfer several hours of footage from a Blackmagic® device to Adobe® Premiere Pro. In turn, with uncompressed HD 10-bit and 12-bit video, users can edit the ProRes 422 (HQ), ProRes 4444 XQ, and other data streams. Thumbnails and preview rendering are significantly more responsive when using large items with numerous high-definition clips.

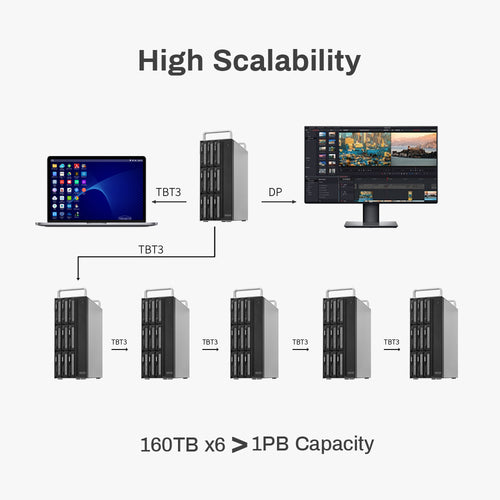

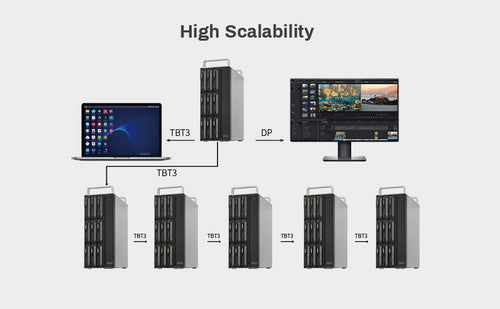

High Scalability

Using one cable, Thunderbolt 3 enables users to daisy-chain more than five devices to their computer. As a result, users can achieve an enormous 800 TB capacity by linking together six D8-332 devices.

Thunderbolt 3 and Thunderbolt 2 Compatibility (for Mac only)

If your Mac has Thunderbolt 3 and Thunderbolt 2 ports, you can capitalise on the D8-332 to achieve high-end transfer rates. With Apple’s Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter (not sold with the D8-332), compatibility between the D8-332 and earlier Thunderbolt technologies is straightforwardly achieved.

Perfectly Suited for the Most Demanding Video Professionals

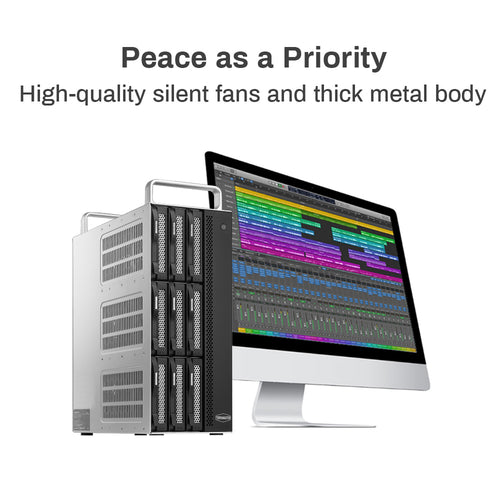

With its aluminium casing, metal build, and 80-mm inbuilt temperature-controlled smart fans, full heat dissipation of the D8-332 is assured for those video professionals working long hours.

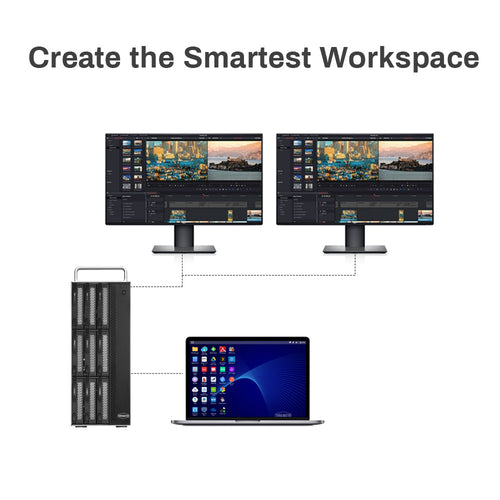

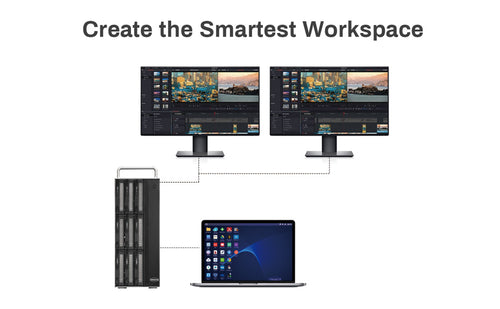

Create the Smartest Workspace

A key feature of Thunderbolt 3 is its bandwidth capacity, which has been doubled since Thunderbolt 2. At the same time, the D8-332 benefits from a HD DP digital interface and a pair of Thunderbolt 3 interfaces. By daisy-chaining two 4K displays (or one 5K display) to the D8-332, users can augment their workspace in the smartest and most suitable way for their professional needs. Additionally, using Thunderbolt 3 connections, users can even power a compatible notebook computer.

Multiple RAID Supports

The D8-332 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilised in the most efficient way possible.

Professional and Safe

Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D8-332, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.

The Ideal Companion for All Professionals

Given its compactness, its large storage capacity, and its lightning speed, the D8-332 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device.

Authoritative Quality Certification

Both Apple and Intel have certified the D8-332’s design and performance, ensuring the device’s consistent performance and reliability.

Specification

D8-332 Specification

Storage
Processor Model	INTEL JHL7440 + Marvell 88SE9485
Disk Slot Number	8
Compatible Disk Types	3.5" SATA HDD
	2.5" SATA HDD
	2.5" SATA SSD
File System	NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
Maximum Internal Raw Capacity	160 TB (20 TB drive x 8) (Capacity will vary along with the RAID type)
RAIDs Supported	SINGLE DISK,JBOD,RAID 0,RAID 1,RAID 5,RAID10 Note: Mac 0S computers do not support RAlD online expansion and migration.
Power Resume	/
Hardware RAID	√
RAID Manager Software	√
RAID Manager Software Language	English, Chineses, Japanese
RAID Online Expansion	√
RAID Migration	√
RAID Auto-rebuilding	√
Drive Hot Swap	√
The hard drive hibernates as the computer system hibernates	/
The hard drive is scheduled to hibernate	/
HDD S.M.A.R.T. Inspection	√
Sector Inspection and Parity Check	√
SSD Cache	√
Daisy Chain	√
HDD NCQ Technology	√
Alert Notice	√
Event Log	√

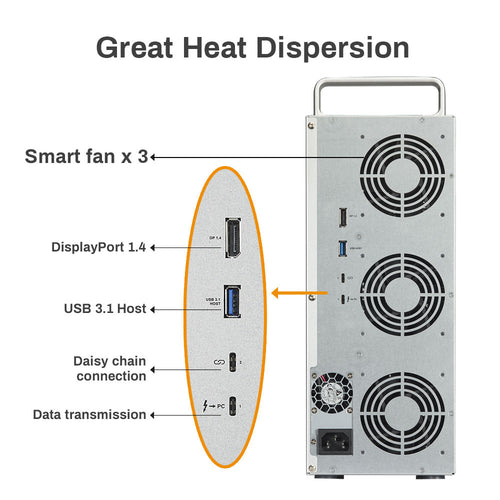

External Ports
USB Device	/
USB Host	USB 3.1 Gen2 host (Use to connect USB storage device)
Thunderbolt Data Transmission	40Gb Thunderbolt 3 x 1
Thunderbolt Daisy Chain	40Gb Thunderbolt 3 x 1
DP Interface	DP 1.4 x 1
RAID switch	/
Power Socket	AC IN 220V
Reading/writing Speed (max.)
Reading Speed (max.)	Read: 1600MB/sec (Use SSD under RAID 0 mode)
Writing Speed (max.)	Write: 1200MB/sec (Use SSD under RAID 0 mode)
Appearance
Size (HWD)	334 x 135 x 295 mm
Packaging Size (HWD)	467 x 225 x 390 mm
Weight	net weight: 6.5Kg Gross Weight: 8.5Kg
Others
System fan	80 mm x 80 mm x25mm 3 pcs
Fan mode	Smart
Noise Level	31.2 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state)
Power Supply
Power Supply	250 W
Redundancy Power Supply	/
AC Input Voltage	100V to 240V AC
Current Frequency	50/60 HZ, Single Phase
Power Consumption	96.8W(Access)
Environment Temperature
Working Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity	5% ~ 95% RH
Supported OS	Windows OS、Mac OS
Warranty	2 years
Certificate	CE, FCC, CCC, KC
Environment	RoHS compliance
Package Contents:	Host unit (x1)
	Power cord (x1)
	Thunderbolt 3 cable (40Gbps) 2 Meter (x1)
	Quick Installation Guide (x1)
	/
	Screws (several)
	Limited Warranty Note x 1
