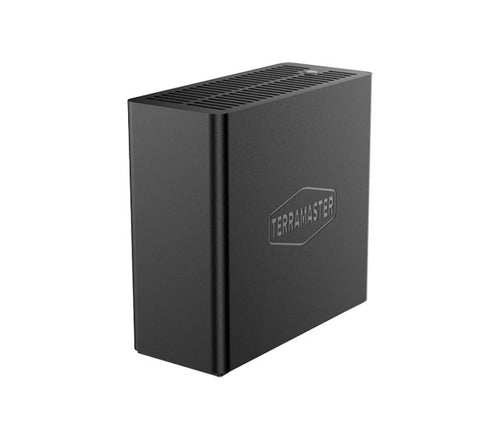

D4 SSD 4-Bay All-Flash DAS

D4 SSD 4-Bay All-Flash DAS

$339.99 USD
$339.99 USD $339.99 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。

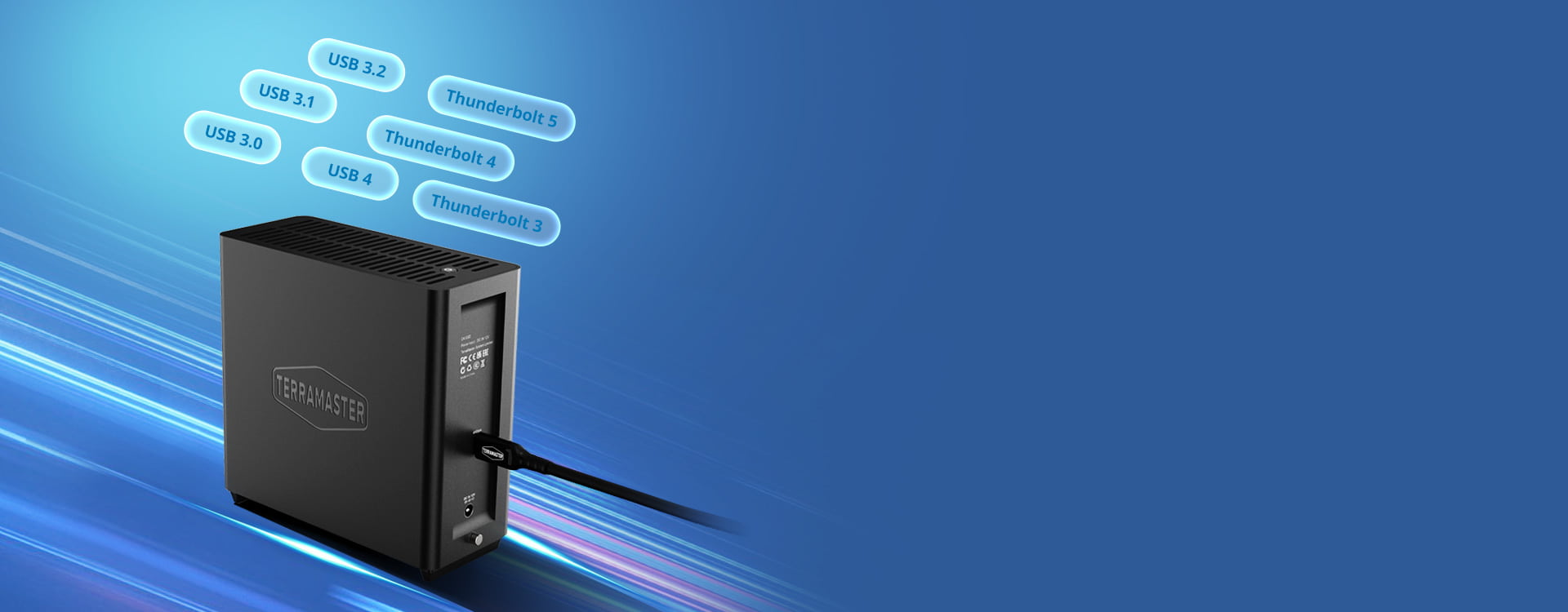

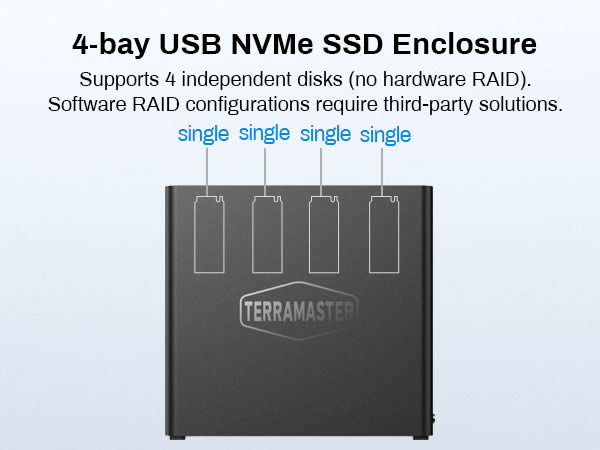

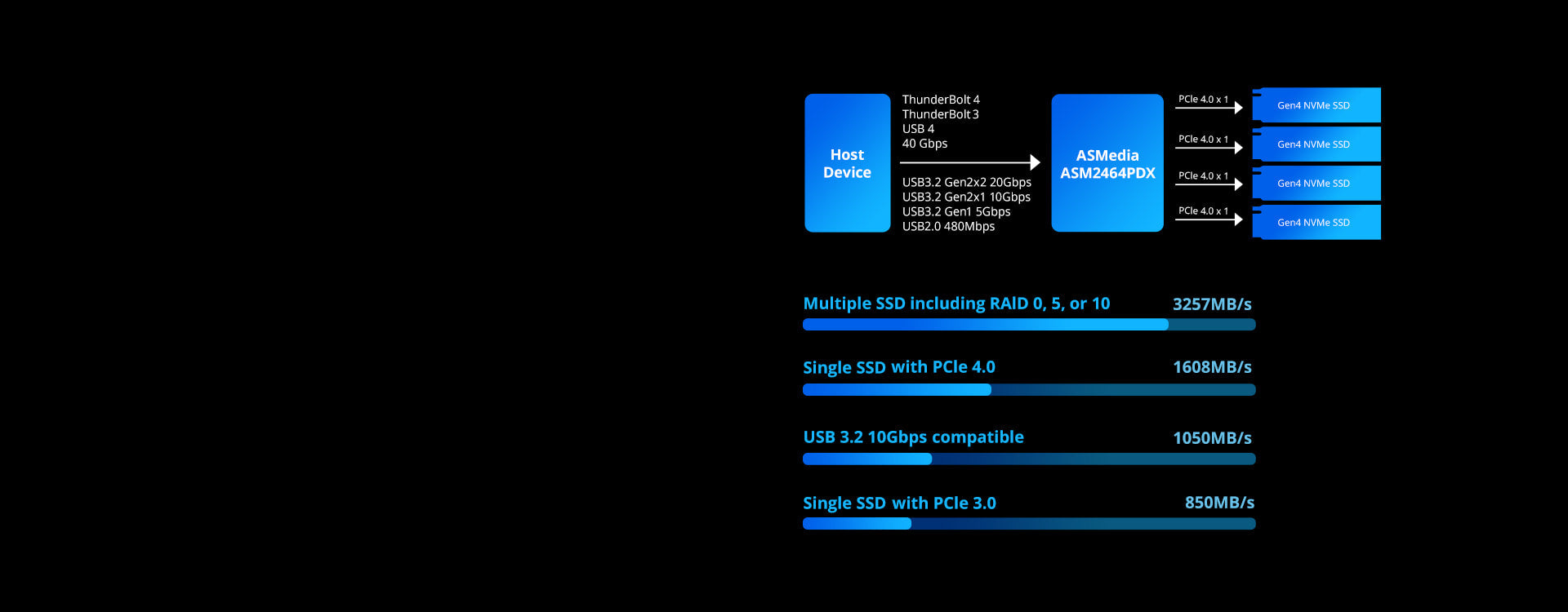

Ultra-Fast 40Gbps Speeds for Demanding Workflows: The D4 SSD NVMe enclosure delivers 40Gbps speeds, and it's compatible with Thunderbolt 5/4/3, USB 4/3.2/3.1/3.0/2.0. It delivers speeds up to 3,224MB/s with 4x 990 PRO SSDs, or 1,608MB/s with a single SSD, ideal for 4K video editing and large file transfers. Note: No built-in RAID; supports four individual disks (soft RAID via third-party tools).

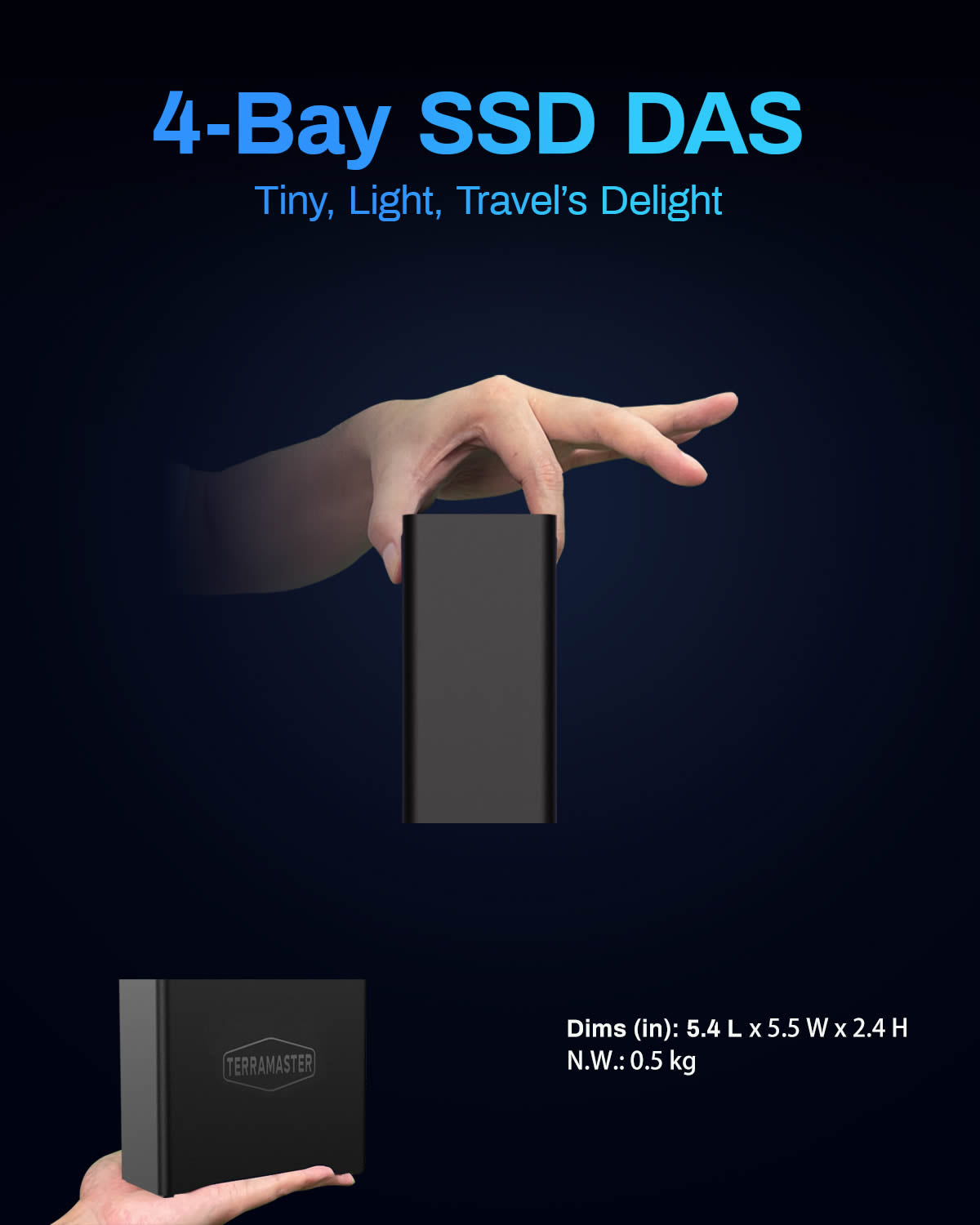

Massive 32TB Storage Capacity in a Compact Design: With support for four M.2 NVMe 2280 SSDs (up to 8TB each), this NVMe SSD enclosure provides up to 32TB of high-speed storage. Its book-sized, lightweight form factor fits seamlessly on desks, shelves, or in travel bags.

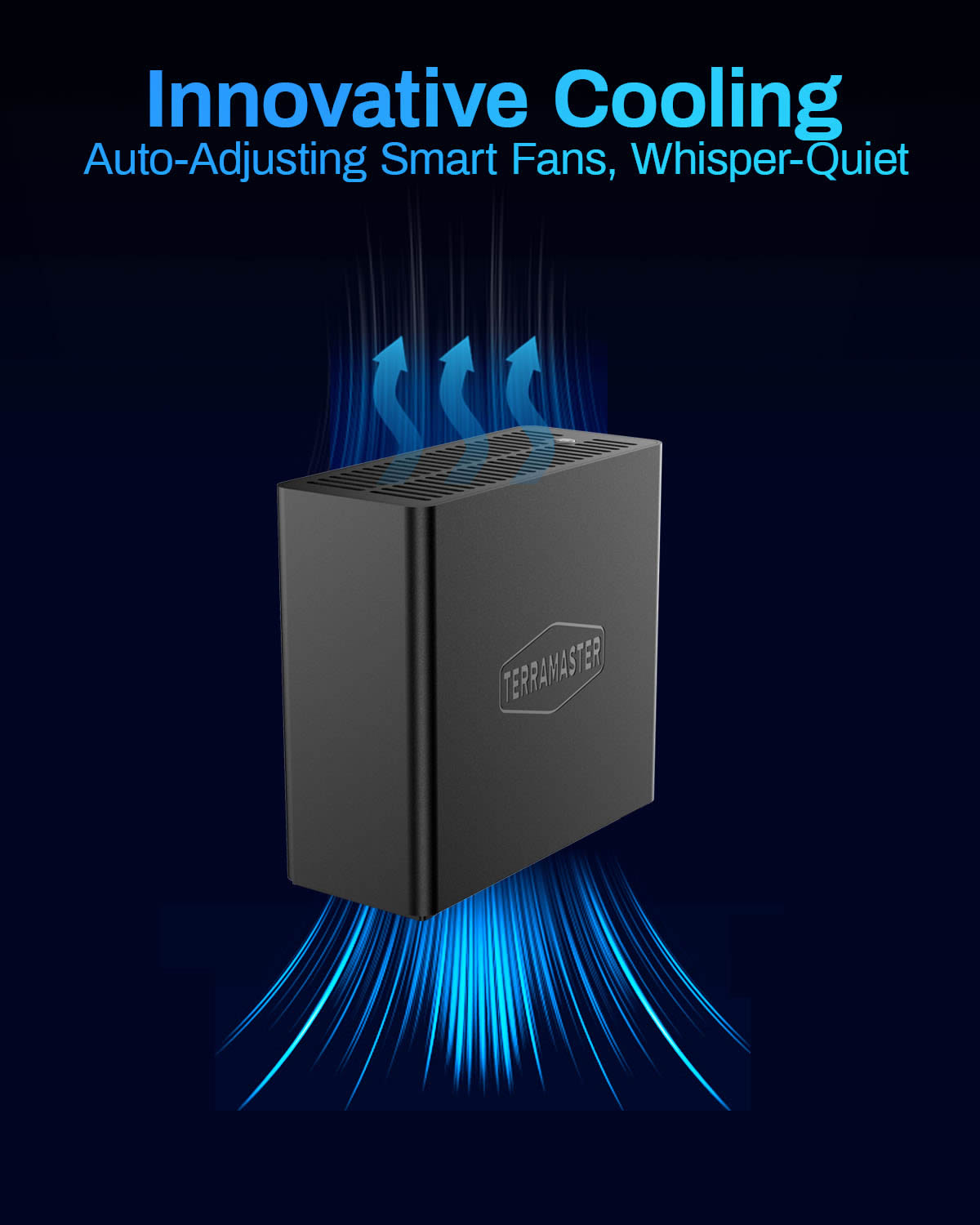

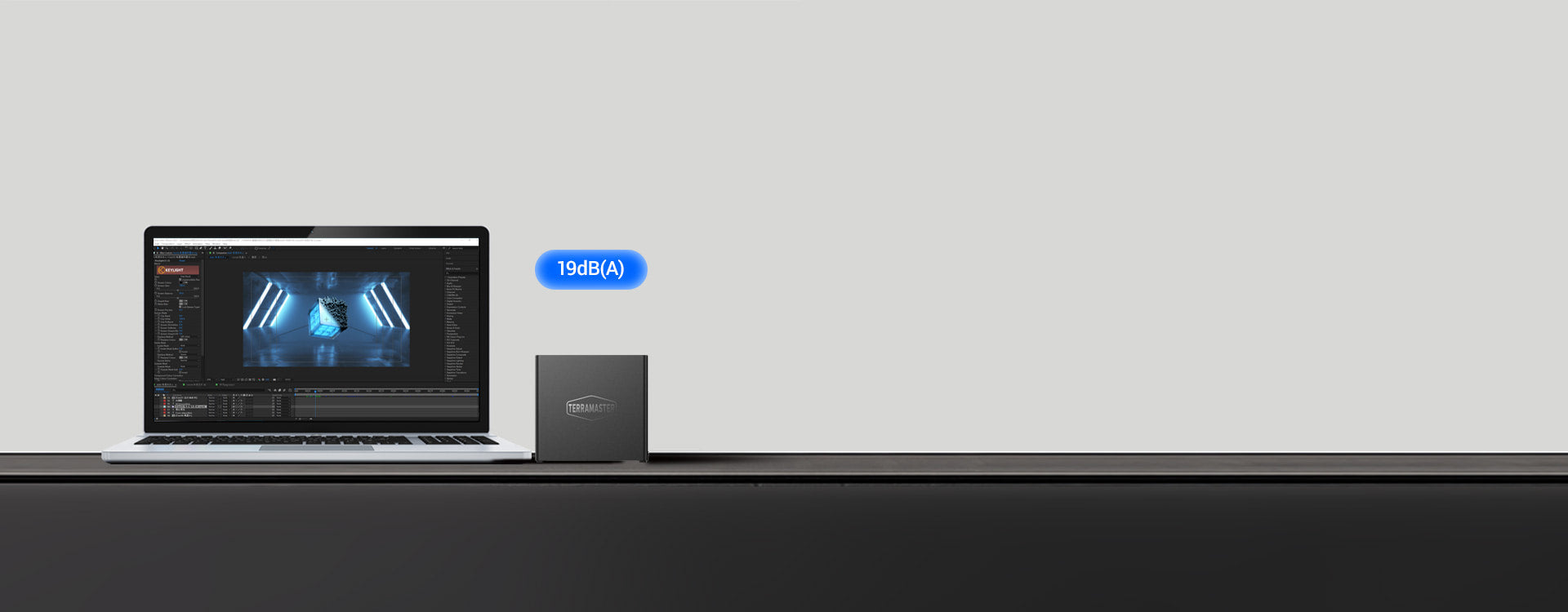

Whisper-Quiet Operation with Intelligent Cooling: An advanced active cooling system with temperature-controlled fans keeps the NVMe external enclosure silent (19dB(A) in standby) even under heavy loads. Four internal temperature sensors ensure optimal heat dissipation, protecting your SSDs while maintaining a distraction-free environment.

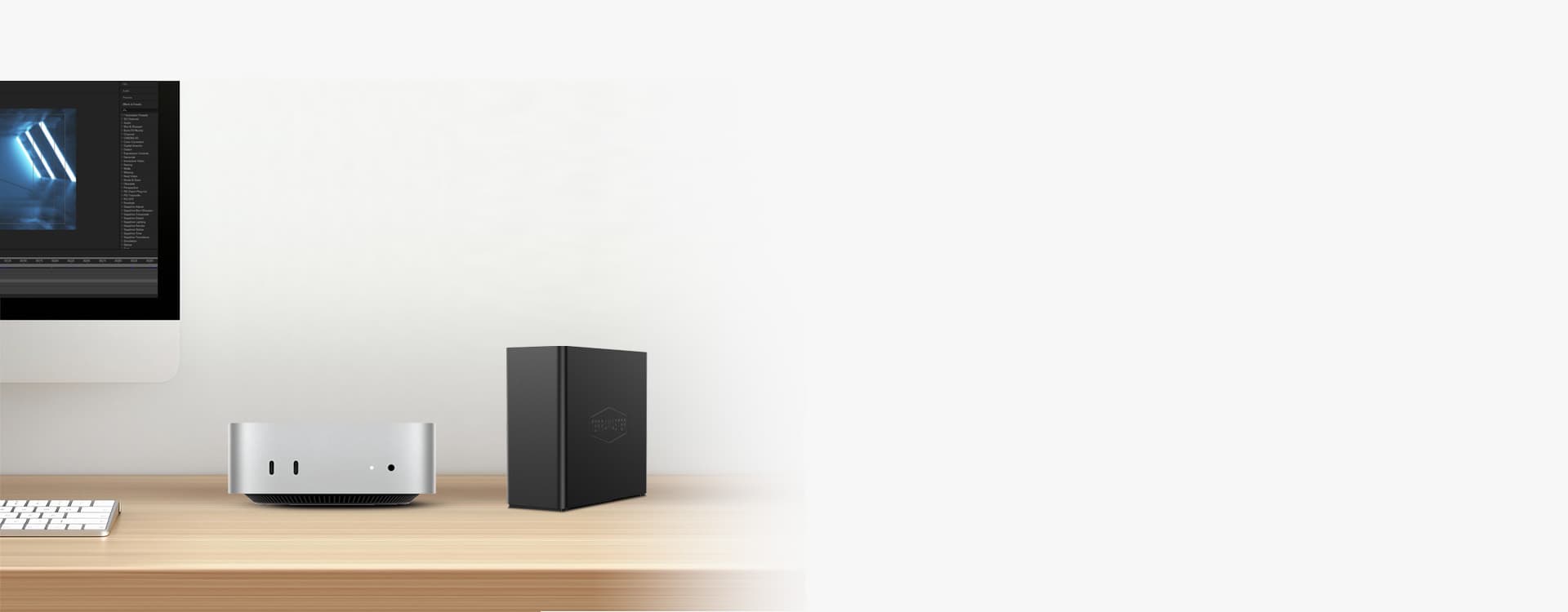

Universal Compatibility: The D4 SSD M.2 NVMe enclosure works as a plug-and-play storage expansion for Mac mini, a bootable macOS drive, or a high-speed Windows/Linux external drive. Comes with a 12V/2A power adapter and features wide voltage input compatibility (12V-20V), ensuring stable operation with various devices including Mac mini, Windows PCs, and mini-computers.

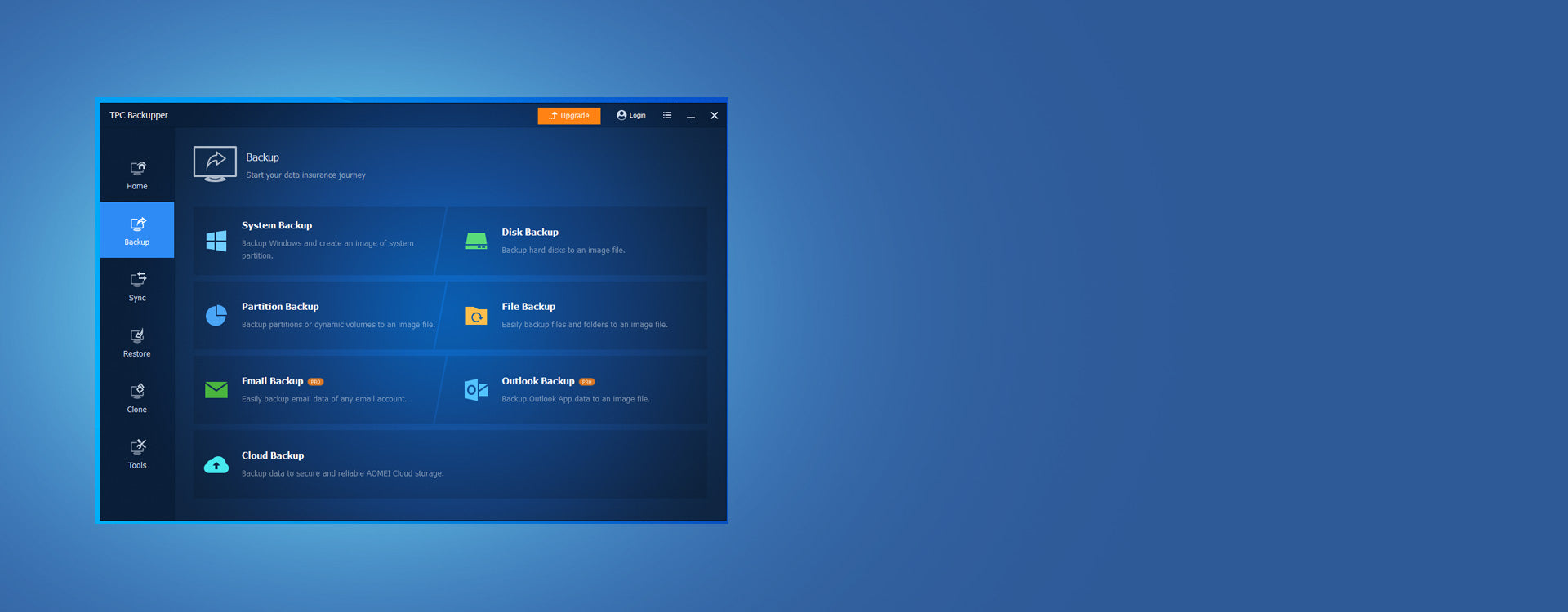

Automated Data Protection & Easy Backup: The included TDAS Mobile App lets you wirelessly back up photos/videos from iOS/Android devices, while TPC Backupper software enables scheduled Windows backups. Power-loss recovery ensures auto-restart after outages, making it server/NAS-ready.
詳細を表示する

Features

Specification

D4 SSD-Specification

Storage
Disk Slot Number 4
Compatible Disk Types PCIe NVMe M.2 2280 SSD
File System NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
Maximum Internal Raw Capacity 32 TB (8TB SSD * 4)
RAIDs Supported SINGLE DISK

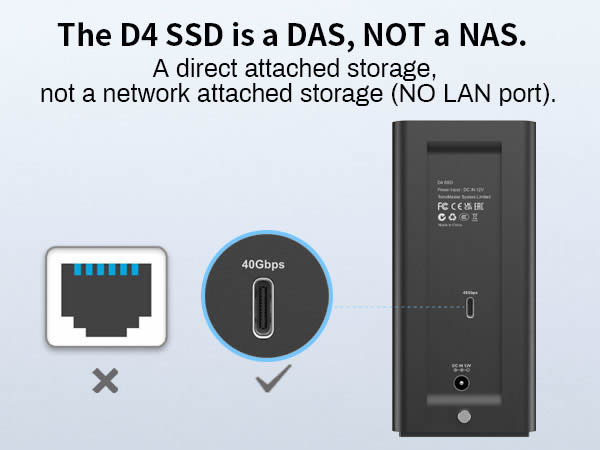

USB USB4 40Gbps
Reading/writing Speed (max.)
Reading Speed (max.) 3257 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1600MB/s (Samsung 990 Pro 4TB*1)
Writing Speed (max.) 3192 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1500MB/s (Samsung 990 Pro 4TB*1)
Appearance
Size (H*W*D) 138 x 60 x 140 mm
Packaging Size (H*W*D) 185 x 172 x 152 mm
Weight net weight: 392g, Gross Weight: 891g
Others
System fan 50 x 50 x 10mm 2PCS
Fan mode Smart
Noise Level 19.0 dB(A) (Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m)
Power Supply
Power Supply 24 W
AC Input Voltage 100V to 240V AC
Current Frequency 50/60 Hz, Single Phase
Power Consumption 15.0 W (Fully loaded Seagate 2TB M.2 SSDs in read/write state)
6.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation)
Environment Temperature
Working Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Mac OS、Windows 11(24H2 or later version)
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance
Package Contents: Host unit (x1)
USB4 Cable C to C 0.8m (x1)
Quick Installation Guide (x1)
Power adapter (x1)
Screws (several)
Limited Warranty Note (x1)
