D8 Hybrid Specification
| Storage | |
| Disk Slot Number | 4 |

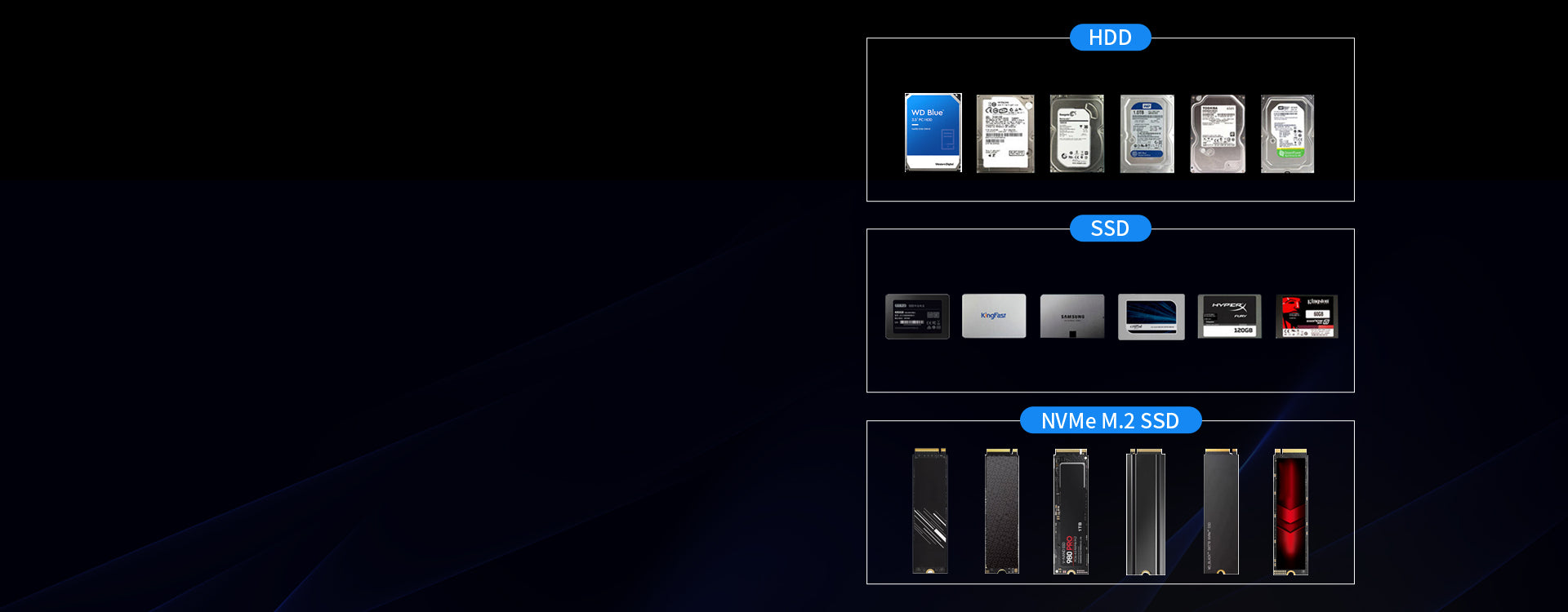

| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| M.2 2280 NVMe Slot | 4(PCle3.0/4.0/5.0) |

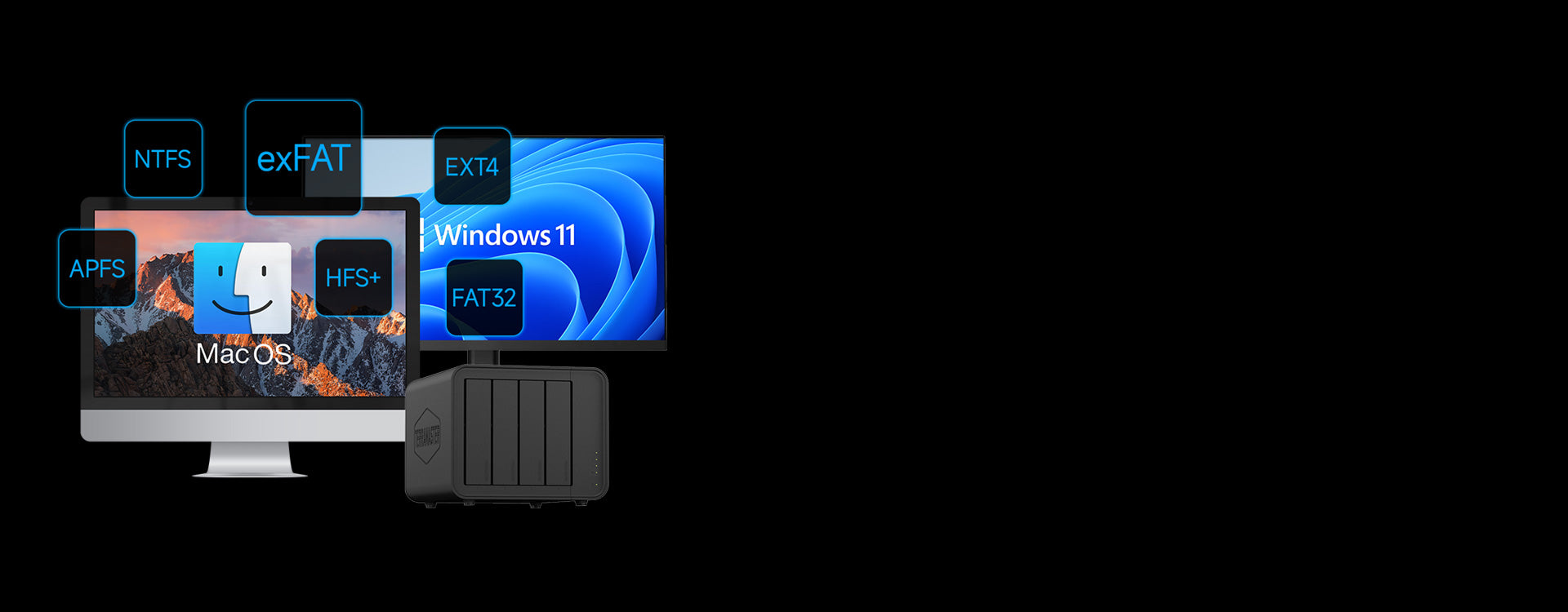

| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 120TB (22 TB drive x 4 + 8 TB drive x 4) |

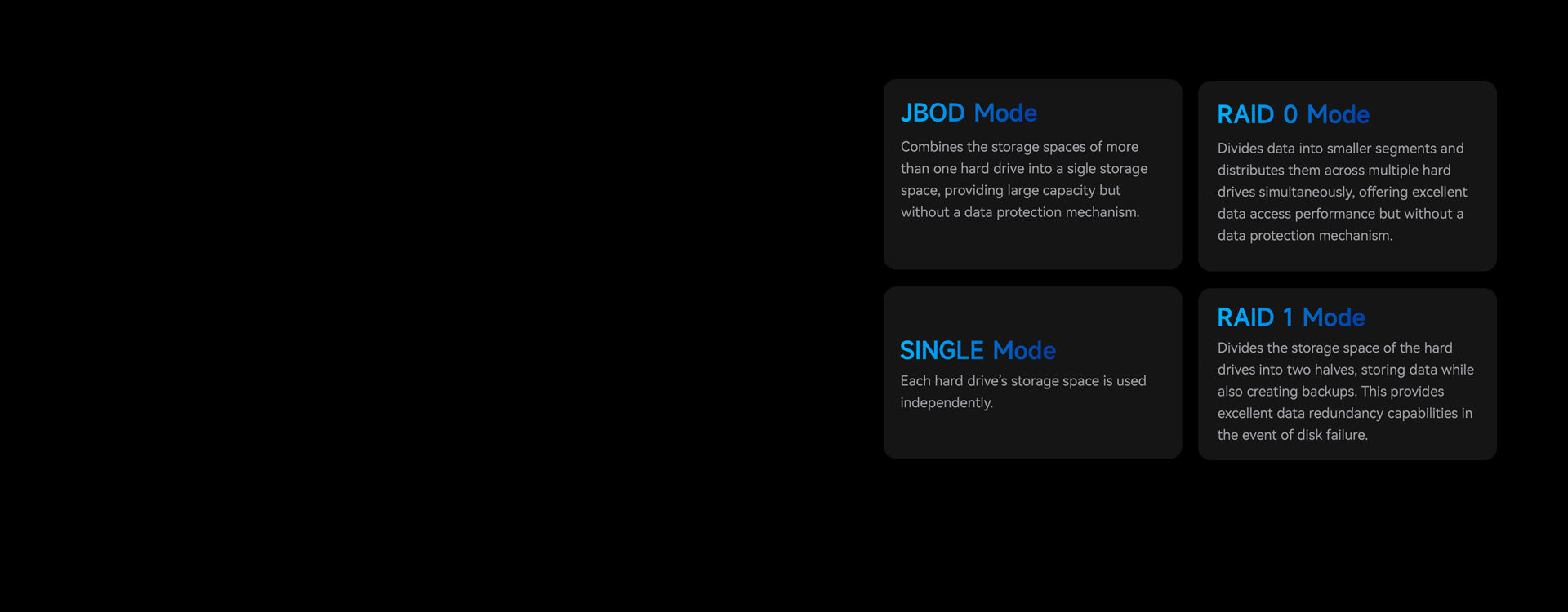

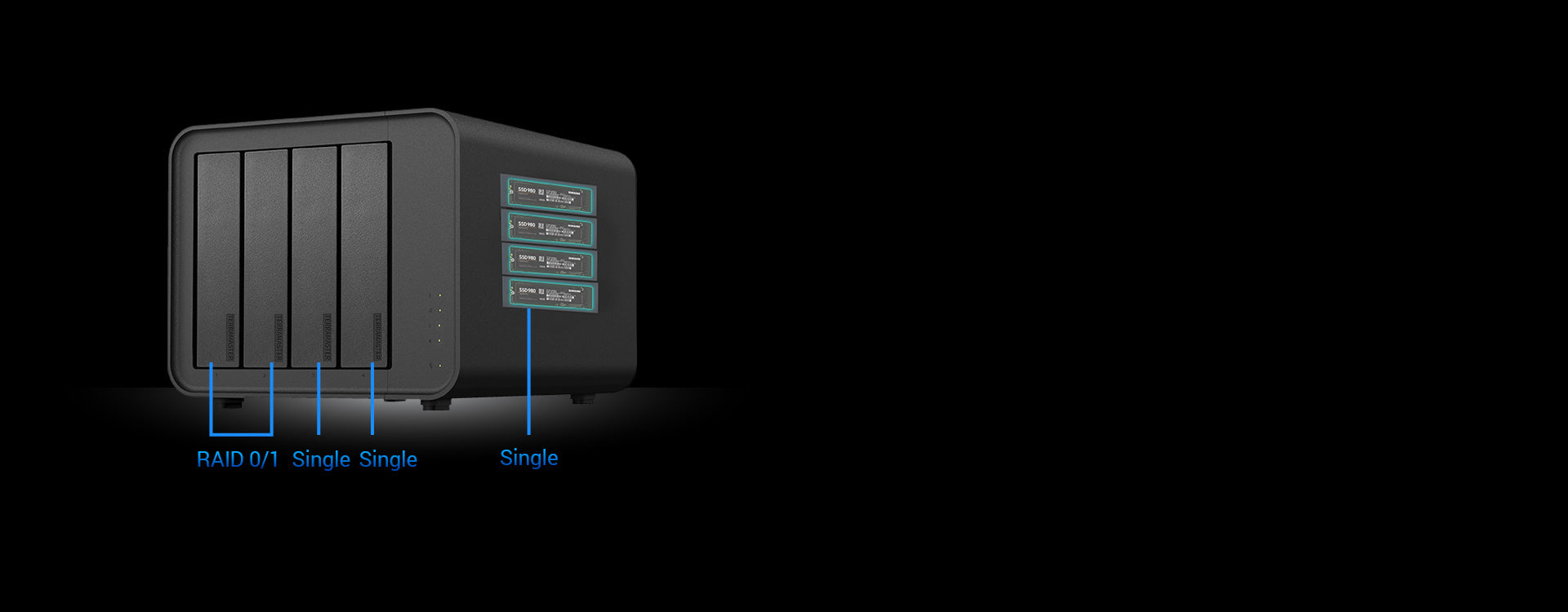

| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1（Only HDD1 and HDD2 support RAID array creation，the rest operate in Single mode.） |
| Hardware RAID | √ |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | √ |
| Drive Hot Swap | / |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSC Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |

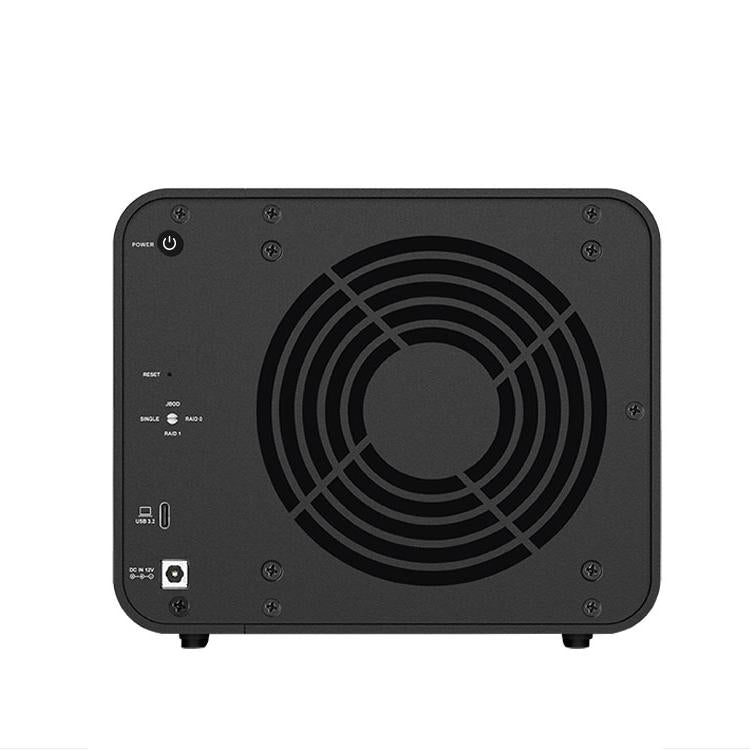

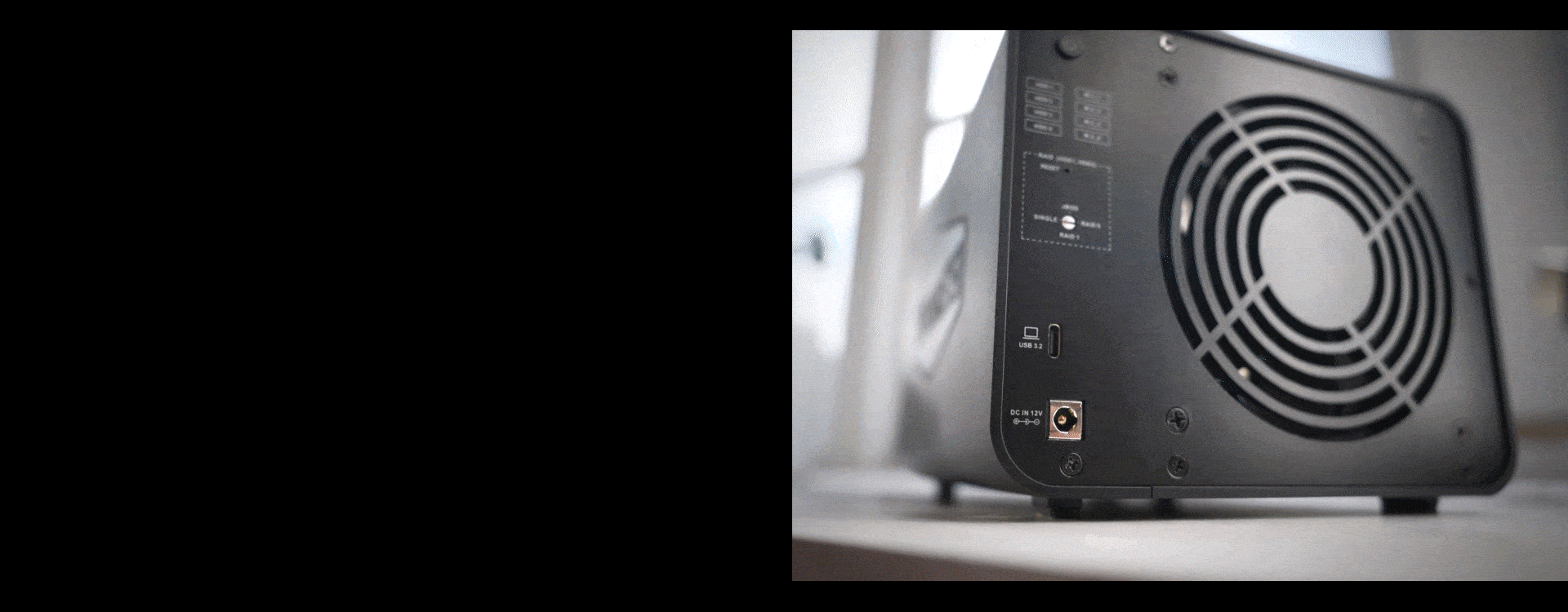

| External Ports | |

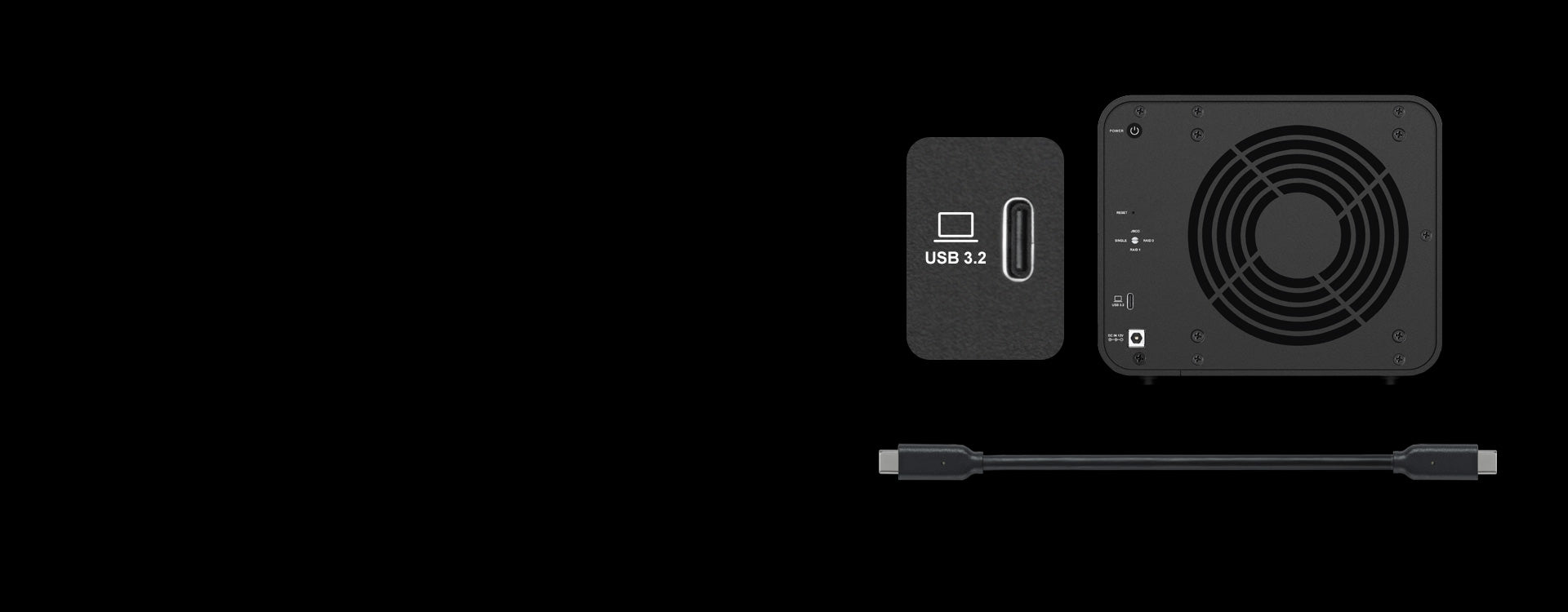

| USB | USB3.2 Type-C gen2 10Gbps |
| Thunderbolt | / |
| DP Interface | / |
| Network Interface | / |
| USB HOST Interface | / |
| Power Socket | DC IN 12V |

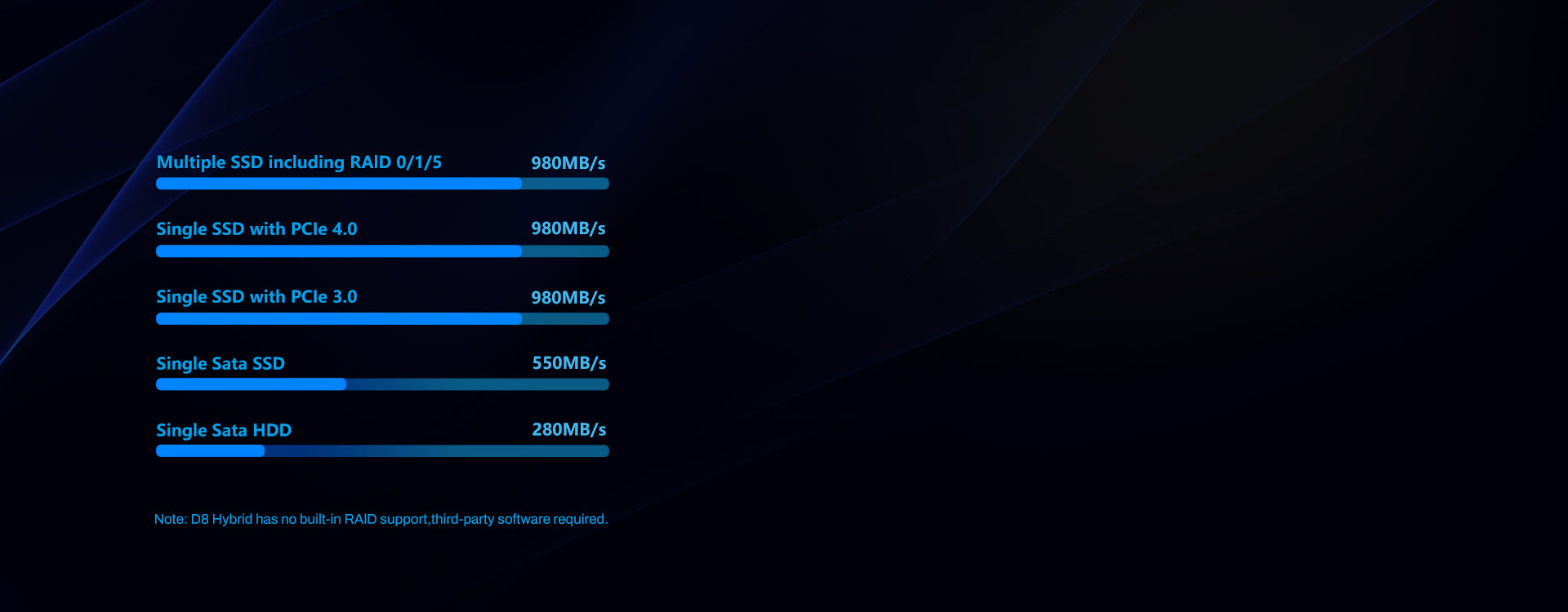

| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read：560MB/s ( SSD* 1 ); Read：1016MB/s ( SSD* 4)； |
| Reading Speed (max.) | Read：980MB/s (M.2 SSD*1 ) |
| Writing Speed (max.) | Write：520MB/s ( SSD*1 ); Write：960MB/s ( SSD*4 )； |
| Writing Speed (max.) | Write：880MB/s (M.2 SSD*1 ) |
| Appearance | |
| Size (H*W*D) | 222 x 179 x 154 mm |
| Packaging Size (H*W*D) | 300 x 275 x 186 mm |
| Weight | net weight: 1.9Kg Gross Weight:3.1 Kg |
| Others | |

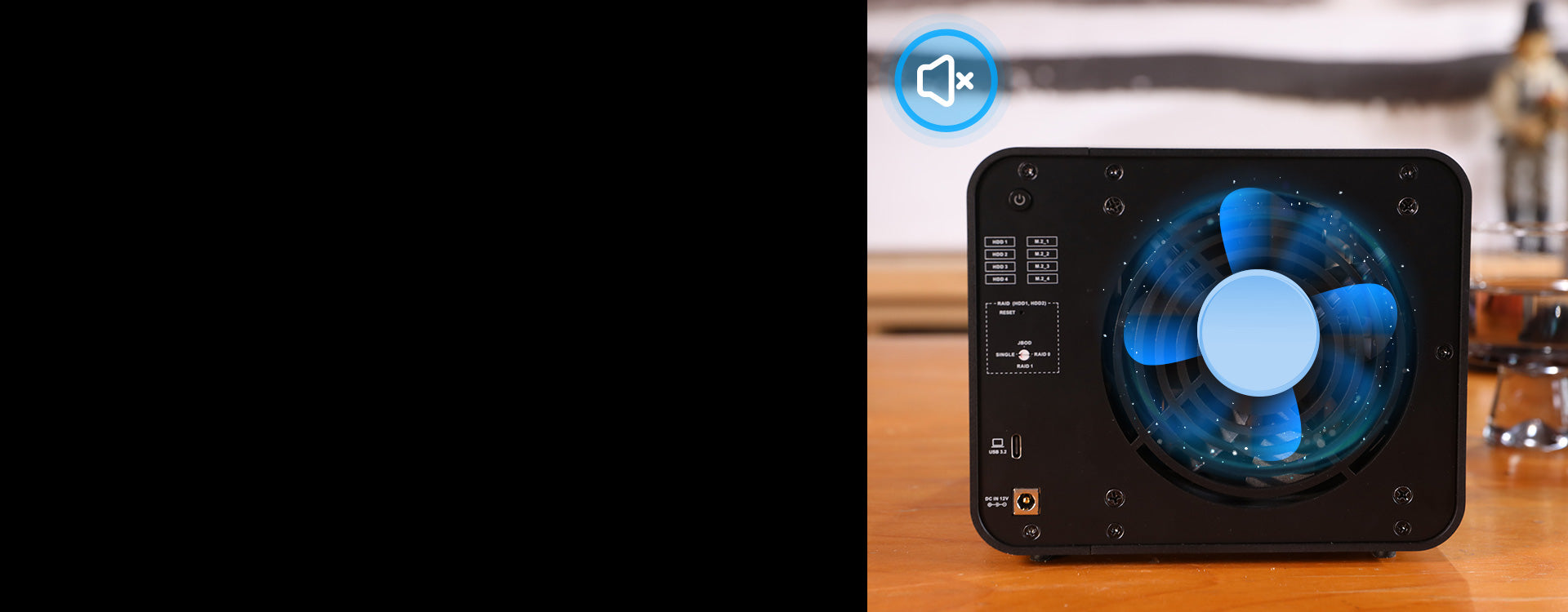

| System fan | 120 x 120 x 25mm 1PCS |
| Fan mode | Smart |
| Noise Level | 21.0dB(A) |
| Power Supply | |
| Power Supply | 90 W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 40.8 W(Access), 9.8 W (Hibernation) |
| Environment Temperature | |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS、Mac OS、Linux |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| USB Cable C to Type-C(10Gb) (0.8m x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
