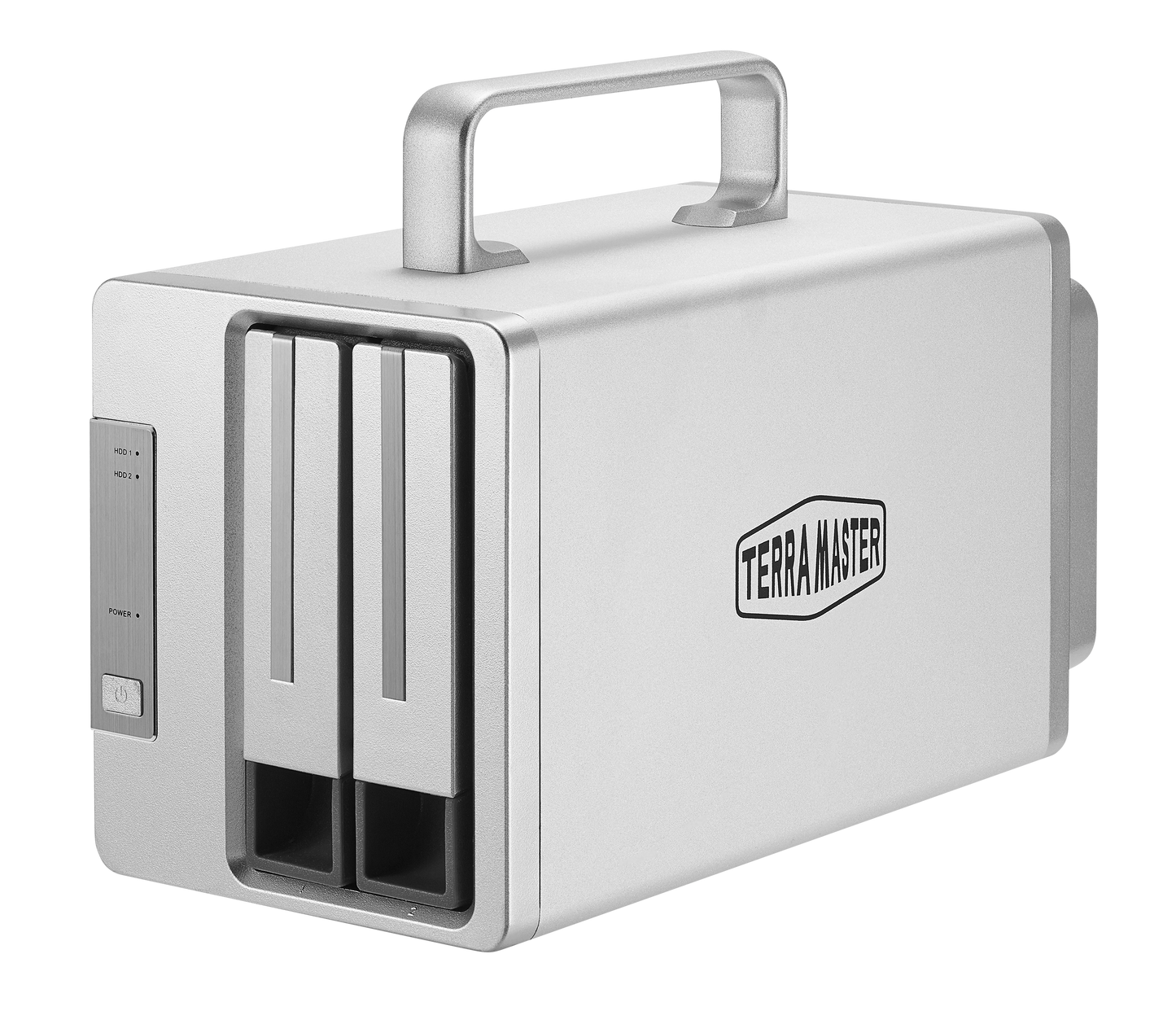

TD2 Thunderbolt 3
TD2 Thunderbolt 3

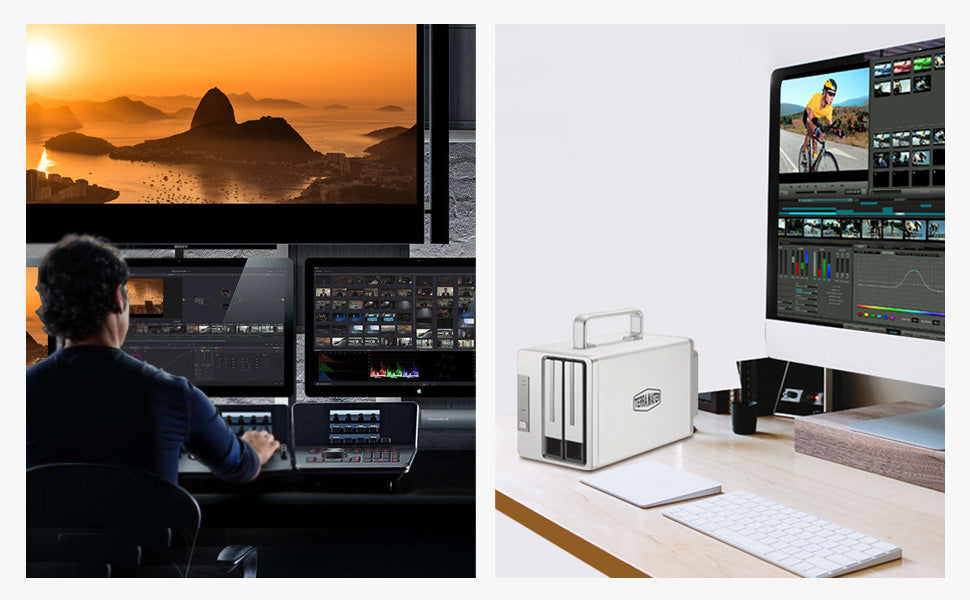

- 便携式设计,专为对速度和安全要求严格的专业人士打造,包括 4K 视频编辑。自 2021 年 3 月 26 日起,搭载 M1 安全芯片的 Mac 获得全面支持。

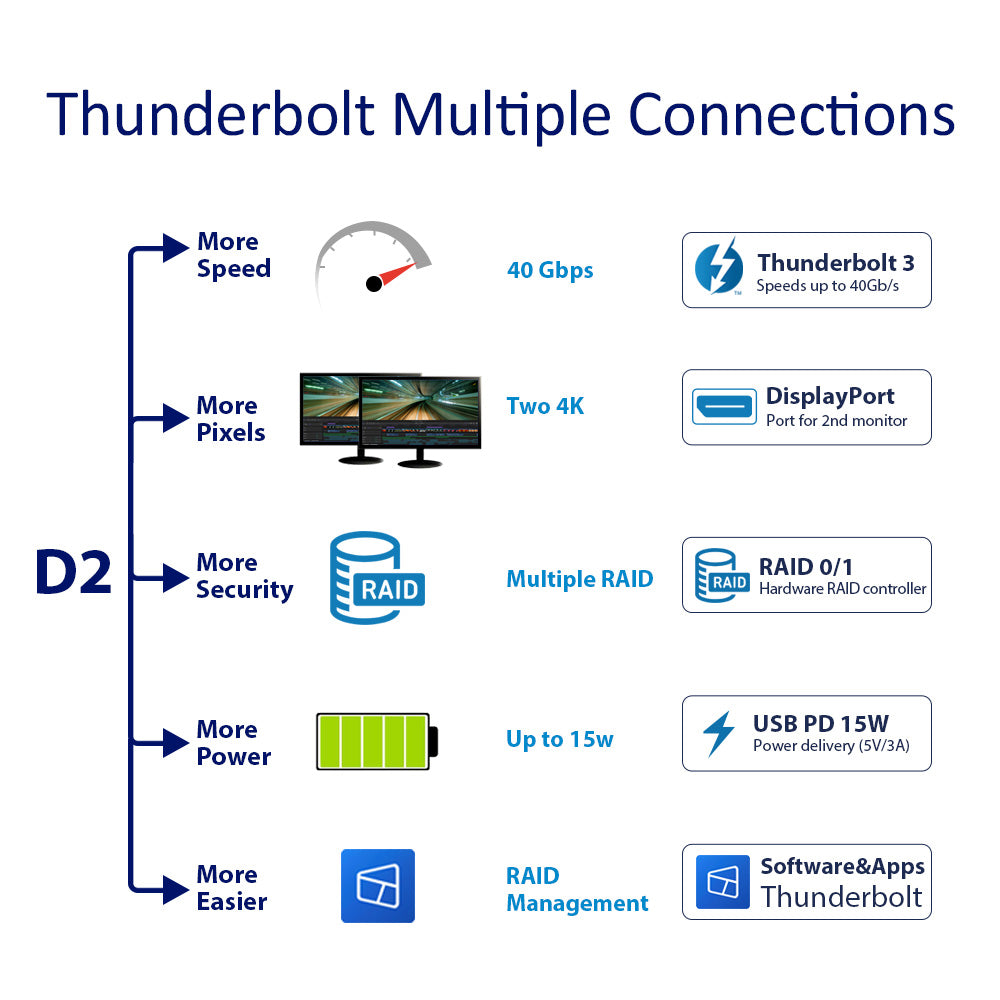

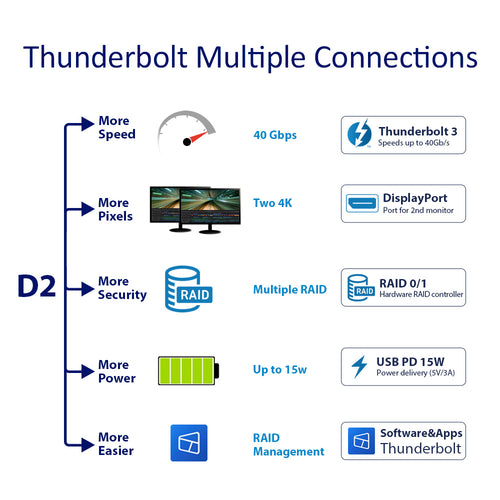

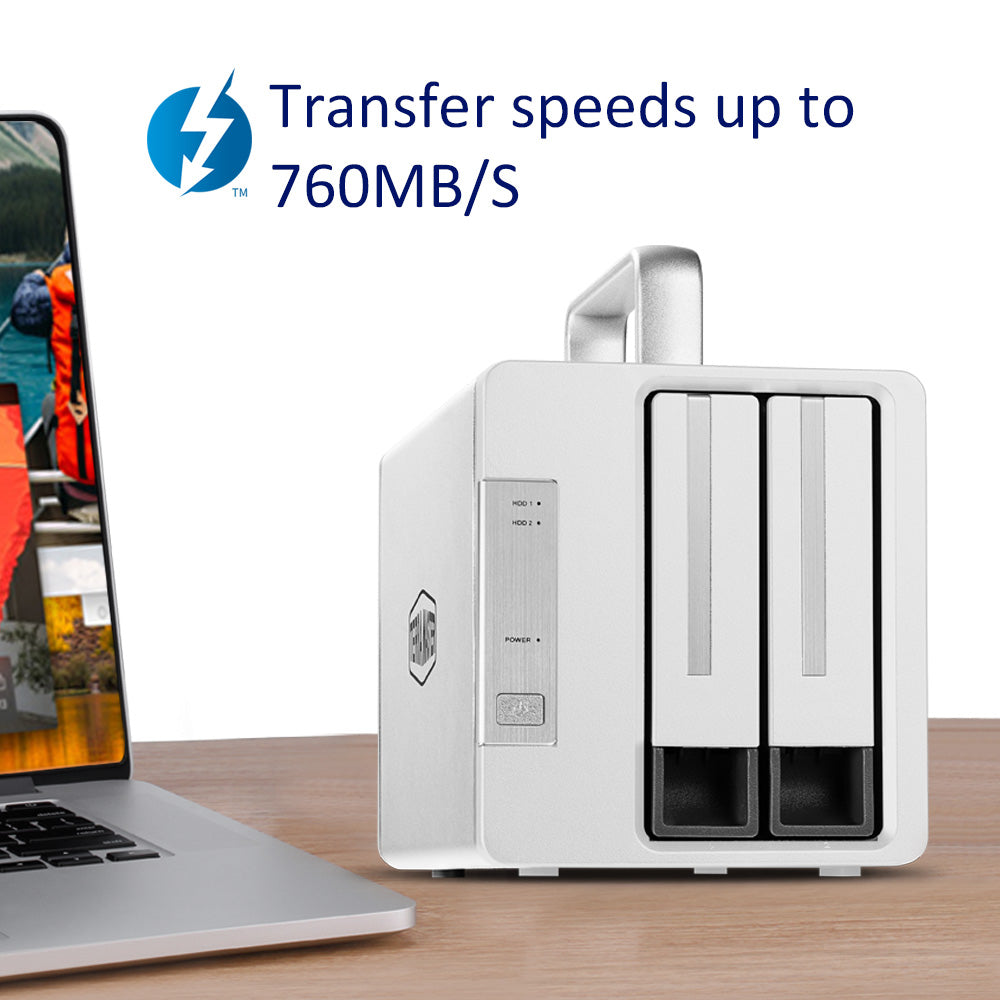

- 两个 40Gbps Thunderbolt 3 接口,读取速度高达 760MB/s(使用 RAID 0 固态硬盘)。兼容 3.5 英寸和 2.5 英寸 SATA 机械硬盘以及 2.5 英寸 SATA 固态硬盘。

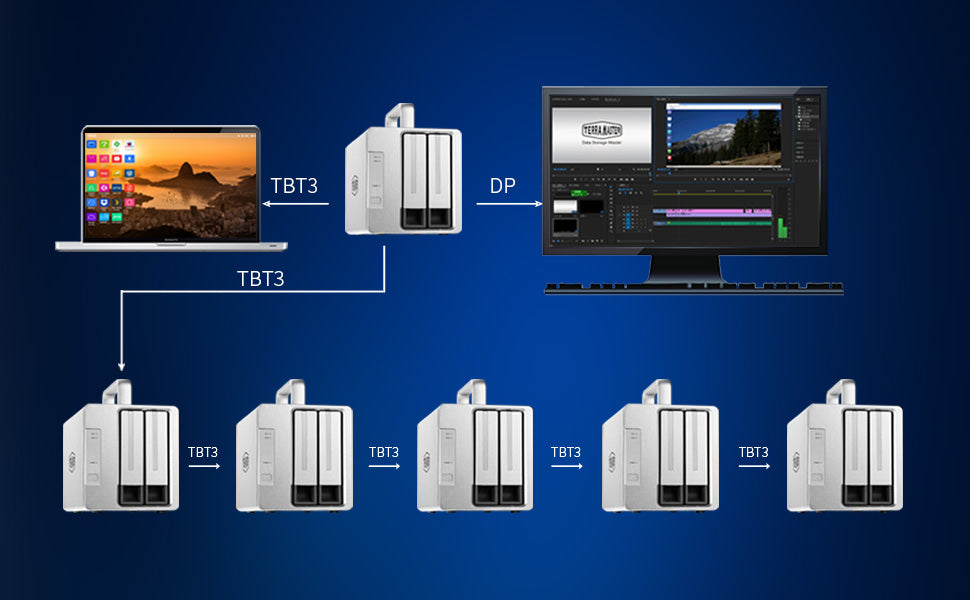

- 硬件 RAID:RAID0、RAID1、JBOD、SINGLE;支持高达 40TB 的存储容量(20TB x 2,RAID 0);菊花链最多可连接 6 台设备。

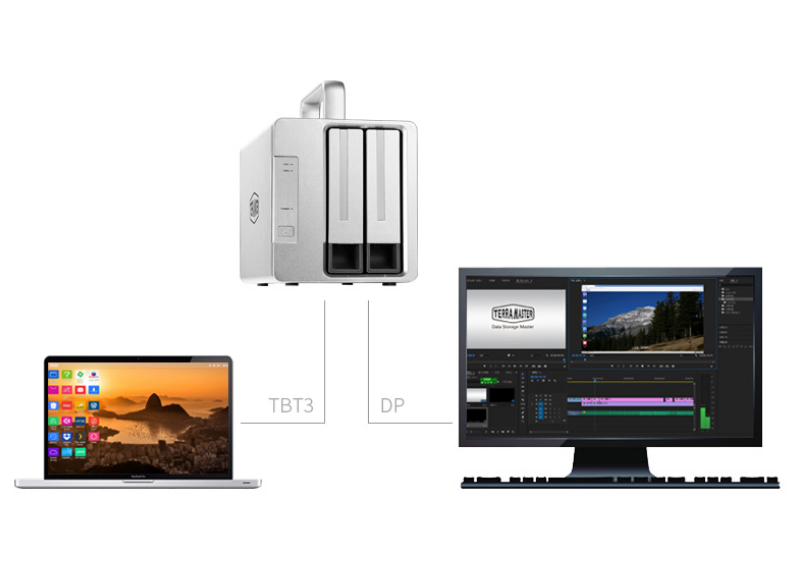

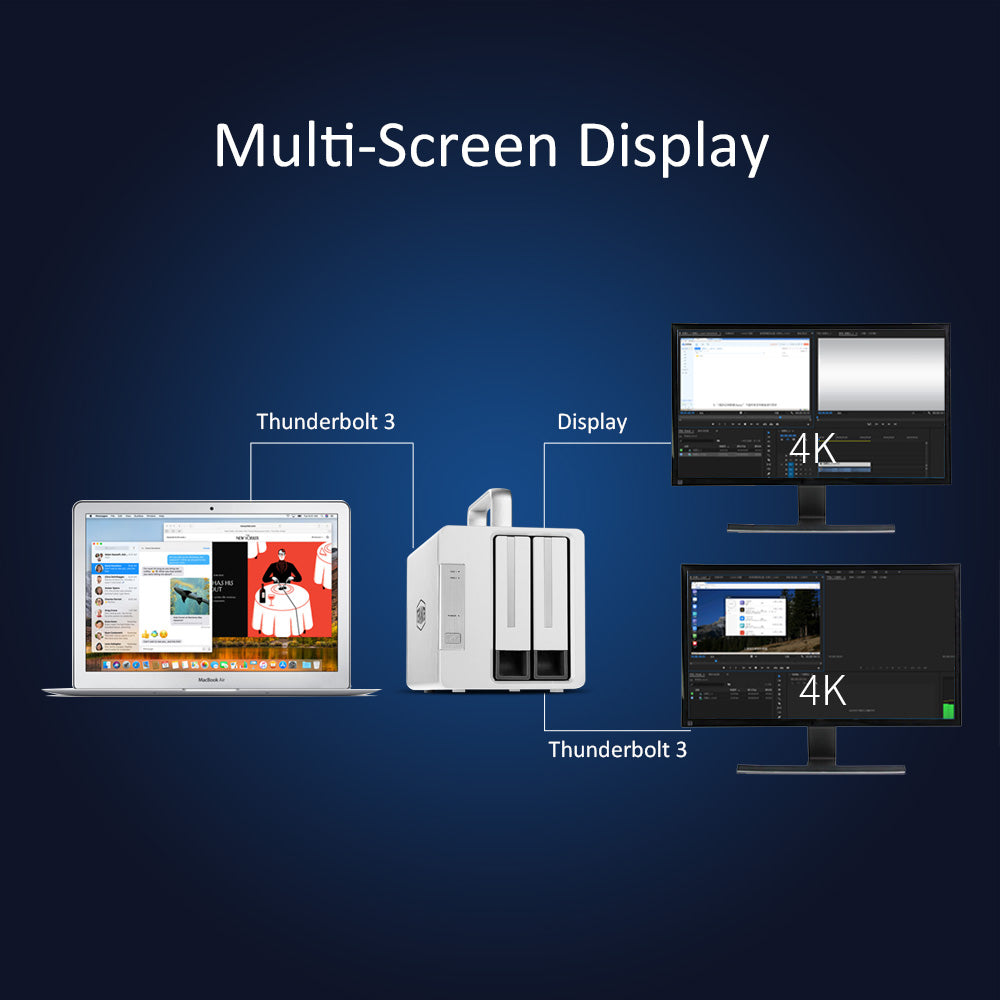

- TD2 Thunderbolt 3 利用 Thunderbolt 3 和 DP 接口,支持最多 3 个屏幕的多屏显示。

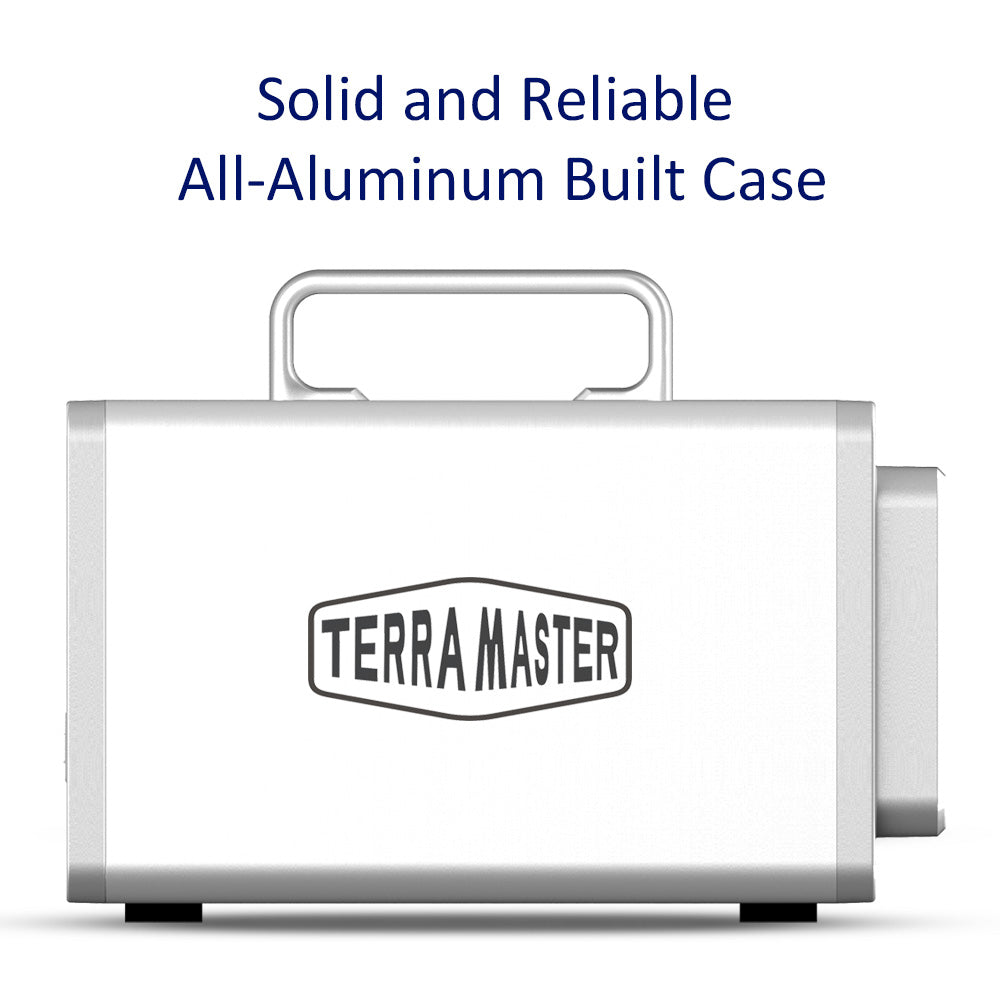

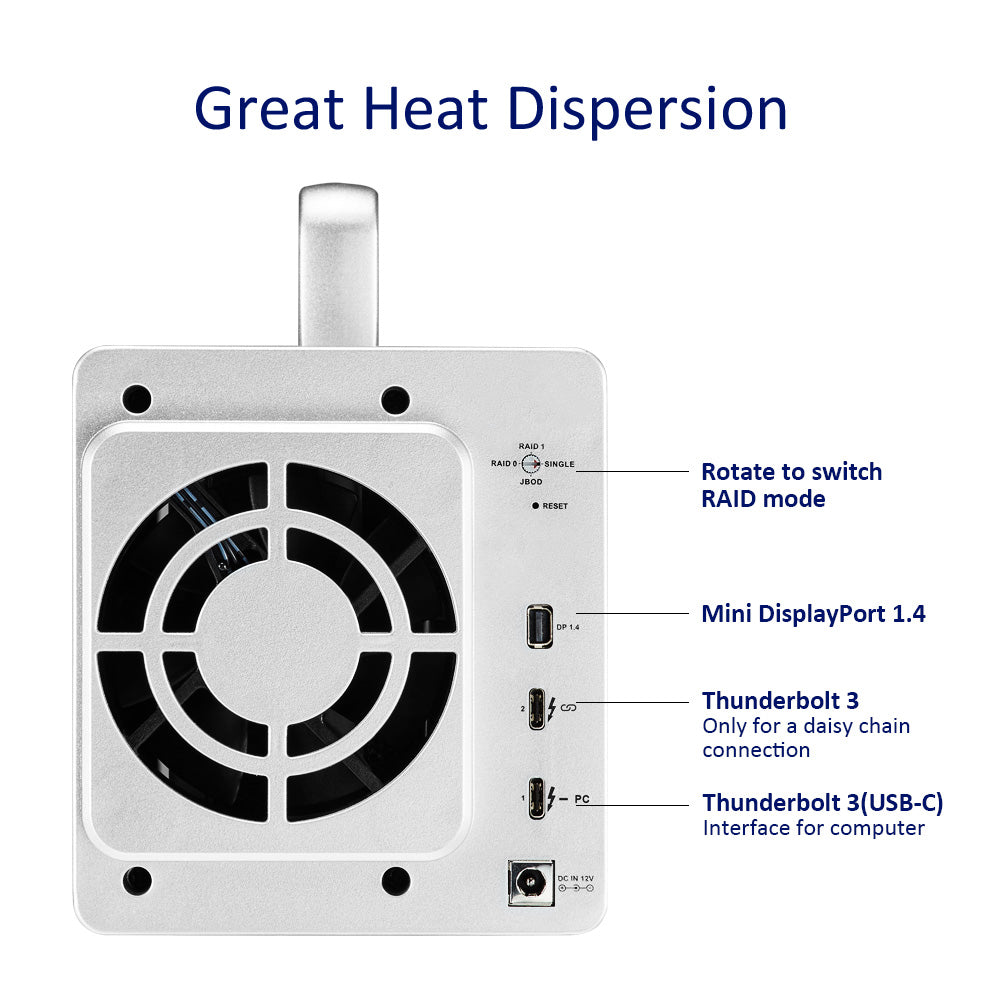

- 电源输出高达 15W,可为兼容笔记本电脑充电(仅限 Mac,不支持 Windows)。铝合金外壳,80 毫米风扇,确保出色散热效果。
无法加载取货服务可用情况

Features
Specification
TD2 Thunderbolt3 Specification
| Storage | |
| Disk Slot Number | 2 |
| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 36TB (18 TB drive x 2) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1 |
| Hardware RAID | √ |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | √ |

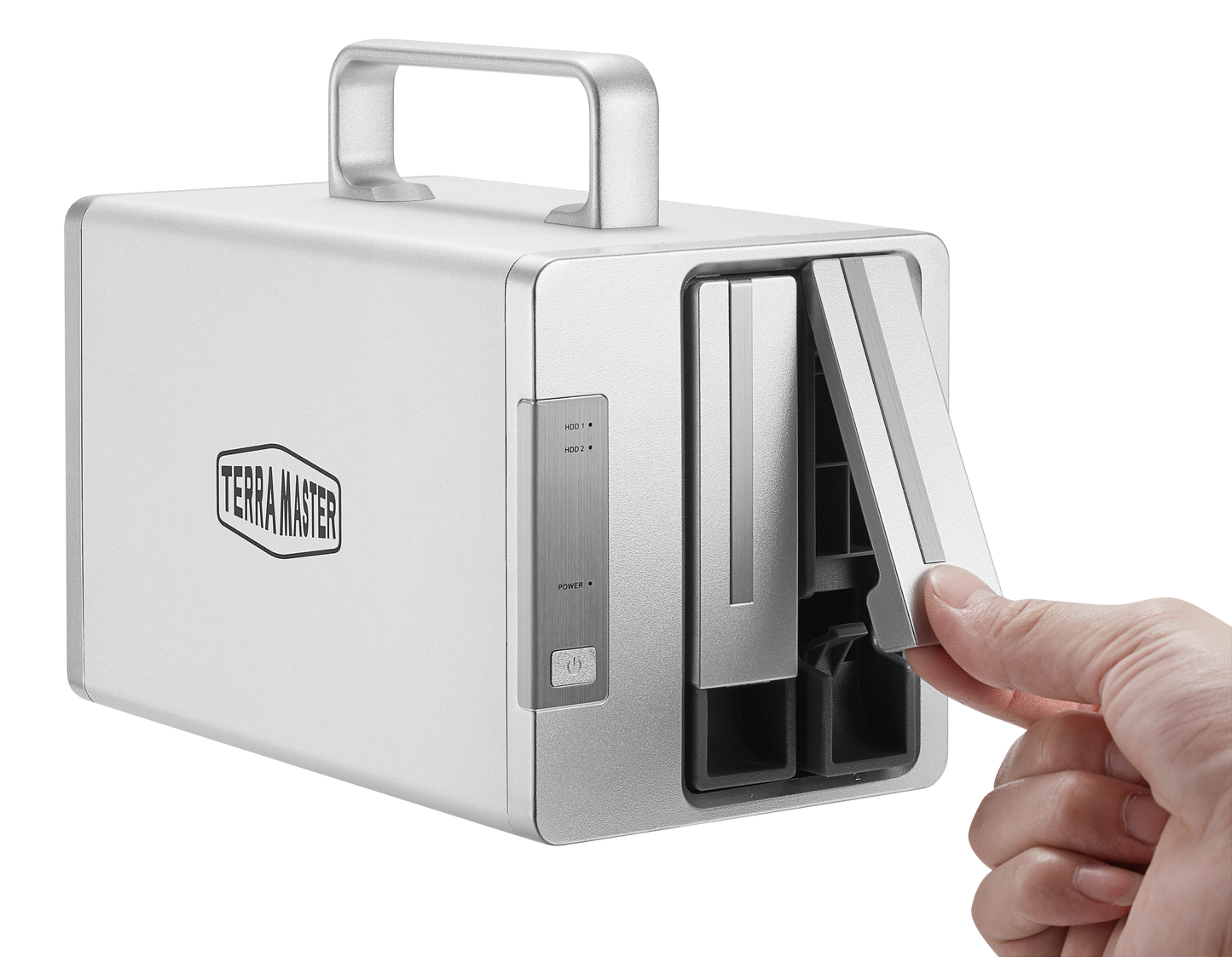

| Drive Hot Swap | √ |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSC Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |

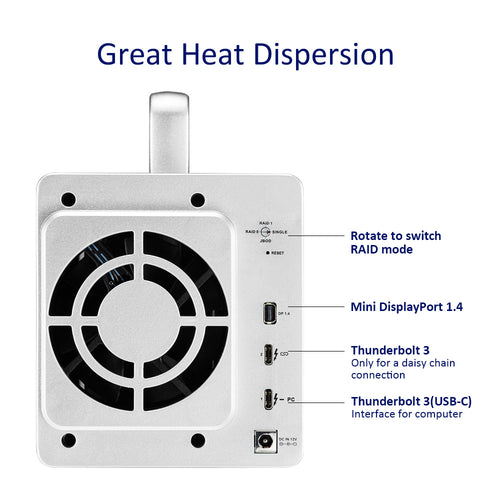

| External Ports | |
| USB | / |
| Thunderbolt | 40Gb Thunderbolt 3 x 2 |
| DP Interface | DP 1.4 x 1 |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read: 810MB /sec , (Use SSD under RAID 0 mode) |
| Read: 521MB /sec , (Use HDD under RAID 0 mode) | |
| Writing Speed (max.) | Write: 806MB /sec, (Use SSD under RAID 0 mode) |
| Write: 506MB /sec, (Use HDD under RAID 0 mode) | |
| Appearance | |
| Size (H*W*D) | 227 x 119 x 173 mm |
| Packaging Size (H*W*D) | 258*220*200 mm |
| Weight | Net Weight: 1.4Kg Gross Weight: 2.2Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 1) |
| Fan mode | Smart |
| Noise Level | 18.6dB(A) |
| Power Supply | |
| Power Supply | 90W |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, single frequency |
| Power Consumption | 65.6W |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS、Mac OS、Linux |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
TD2 Thunderbolt 3 Product Documentation
| Name | Description | Operation | Size |
| TD2-Thunderbolt 3 | Photo | Download | 0.22MB |
